Draft, design, and model in one.

The ease of SketchUp with the depth of Vectorworks — engineered for live events, architecture, and full studio 3D. Precision Windows desktop application.

shopping_bagBuy Licence terminal Try 7 Days Free

arena_rigging_master_v2.dwk

view_in_ar ISO • 1:100

X: 124.80 Y: 48.25 Z: 16.40m

adjust SNAP: VERTEX

OBJECT: Truss_FOH_Euro40

48 FIXTURES ASSIGNED

tune Domain Applications

Built for specialists who build reality.

Three targeted workspaces consolidated into an ultra-fast, zero-bloat standalone engine.

stadium

Live Events & Entertainment

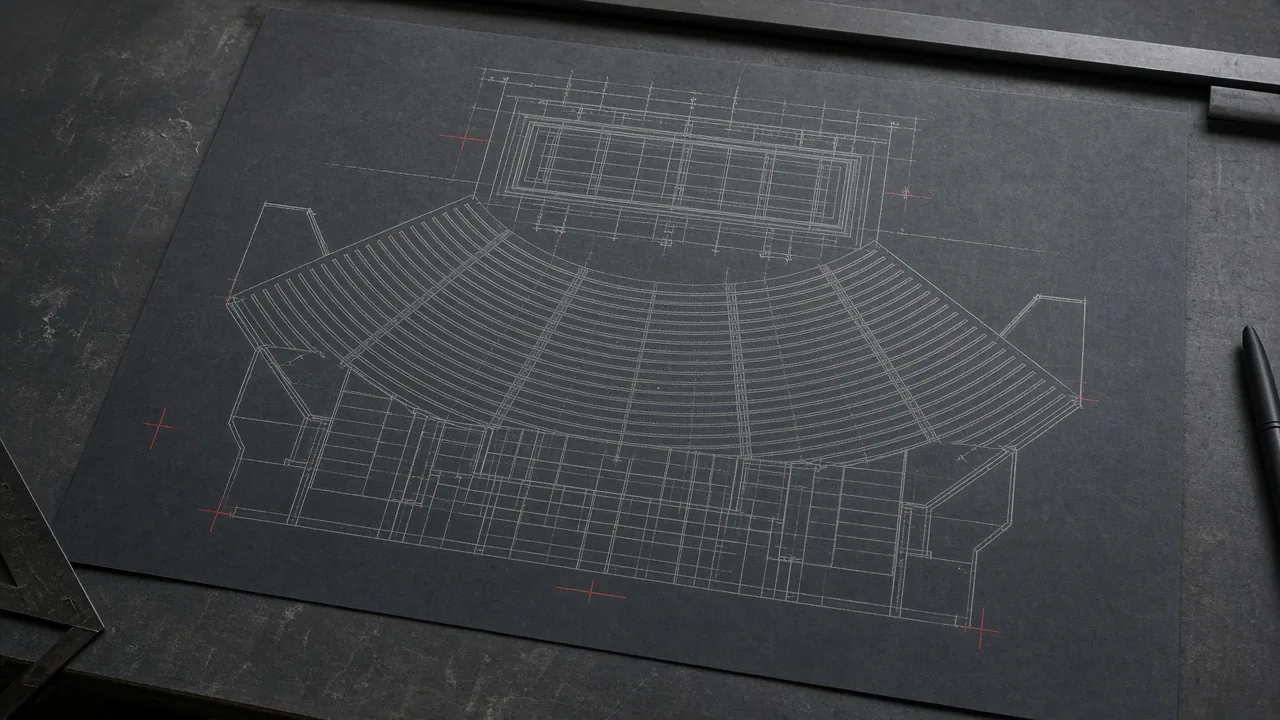

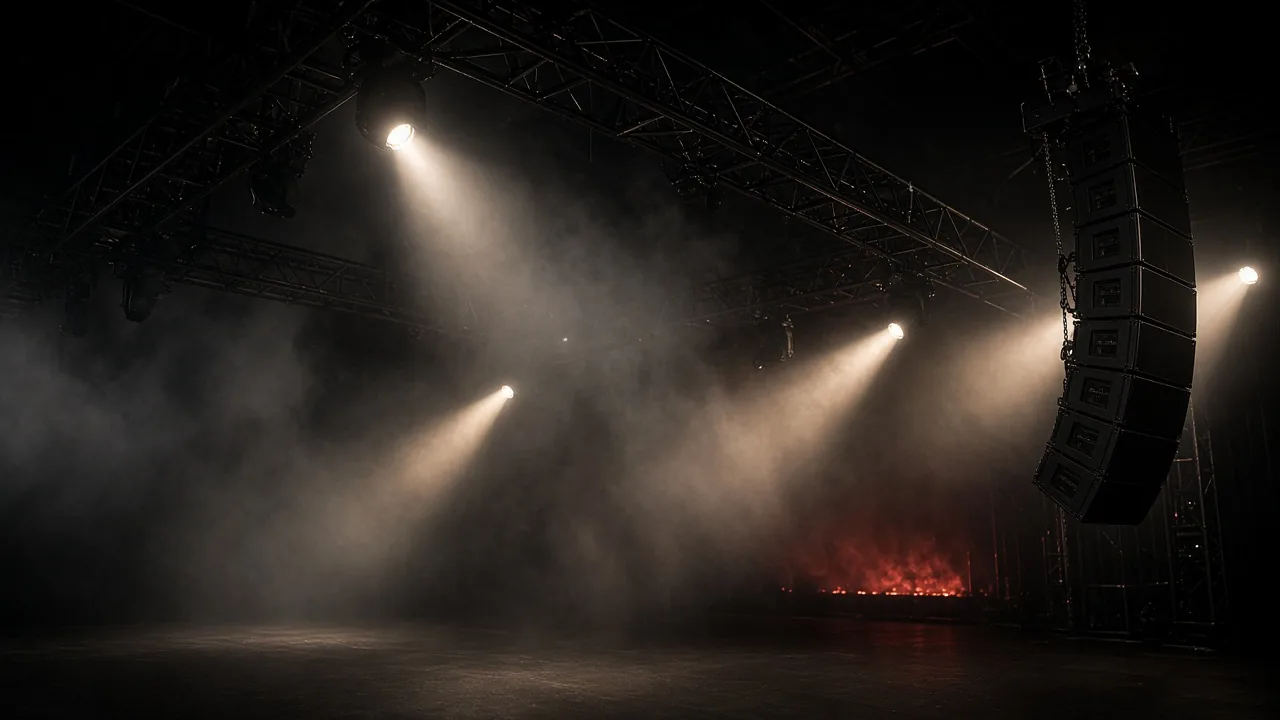

Venue floor plans, dynamic stage plots, automated seating matrices, egress pathways, and load-rated truss & lighting rigging calculations.

• Regulatory Seating Array AUTO-PACK

• Bridle & Hoist Force Vector REAL-TIME

• DMX Fixture Patch Export MVR • GDTF

apartment

Architecture & Interiors

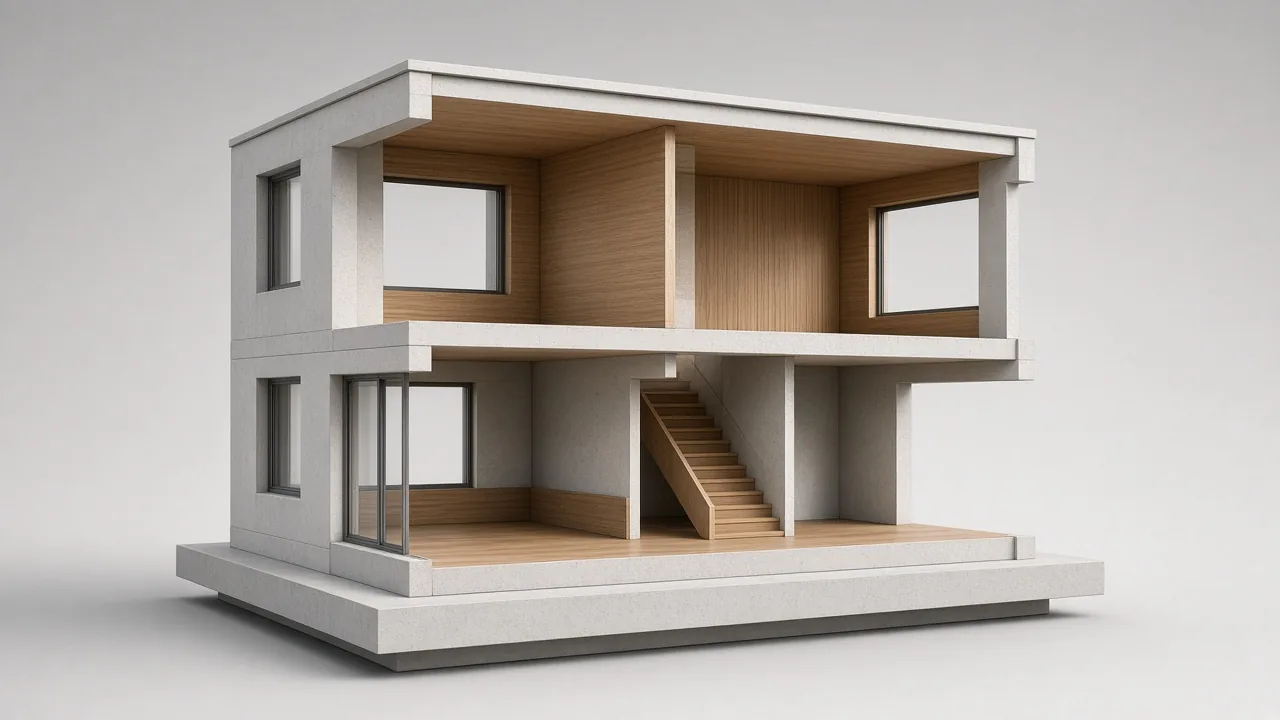

Parametric walls, intelligent doors and fenestration, multi-storey sectionals, elevation projections, and seamless DWG/DXF layer translation.

• Bi-directional DWG/DXF 2024 NATIVE

• Dynamic Cut Sections LIVE HATCH

• Schedule & Bill of Materials INSTANT

view_in_ar

Full Studio 3D

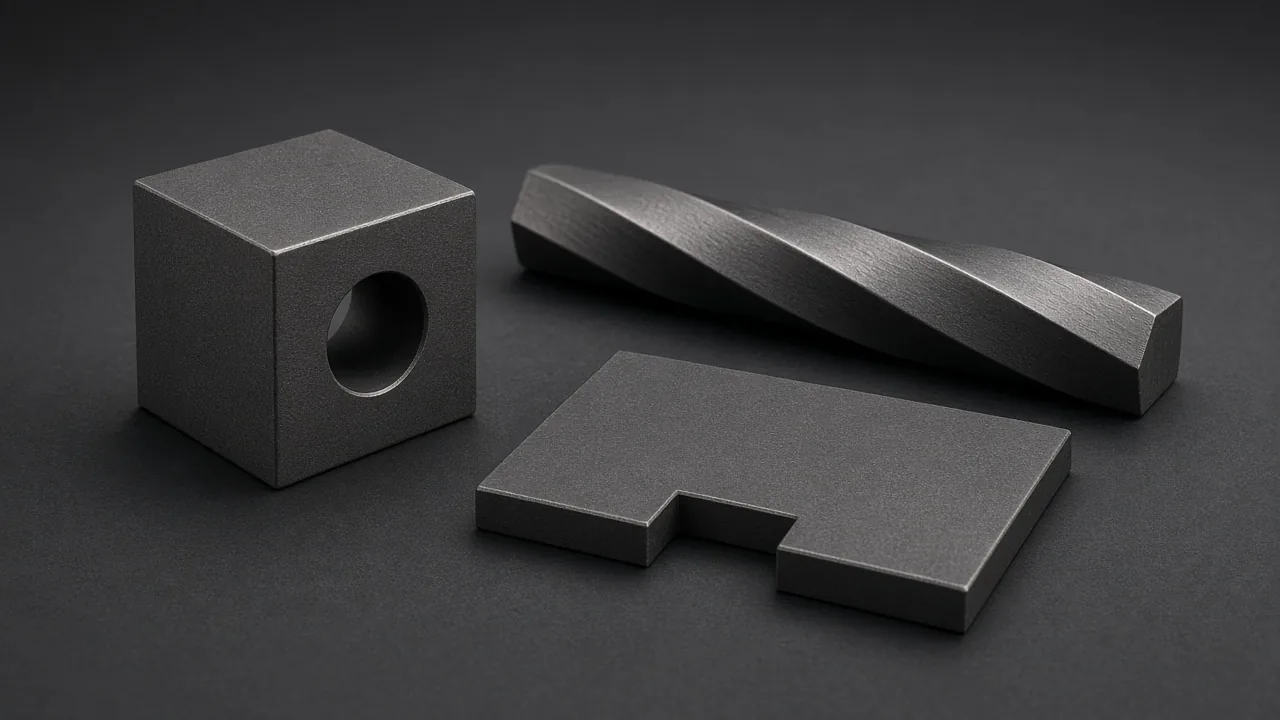

Subdivision surfaces, technical assembly modeling, Boolean geometry with non-destructive history, and geometric constraint solvers.

• Non-Destructive Modifiers STACK-BASED

• GPU Viewport Acceleration DIRECTX 12

• Universal Asset Compatibility STEP • OBJ • FBX

layers Modular Stack

Layered to your exact practice.

Add capabilities as your project scale expands without ever restarting your workflow.

Core Engine 2D drafting, snap matrix, vector rendering & dimensioning

BASE

Events Layer Rigging, structural truss catalog, stage deck & DMX sync

EVENTS

Architecture Layer BIM solids, parametric enclosures, wall styles & elevations

ARCH

Studio 3D Full High-poly subdivision, photorealistic preview & motion rigs

ULTIMATE

bolt Deployment Flow

From installer to production in 90 seconds.

No subscription wall before you launch. No mandatory cloud sign-ins.

STEP 01 download

Download Windows installer (setup.exe)

Compact 180MB native binary compiled for Windows 10/11. Zero third-party web runtimes or heavy Electron bloat.

SHA-256: e3b0c44298fc1c149afbf4c8996fb92427ae41e...

STEP 02 brush

Draft, design, and model in full precision

Start immediately in the uncapped 7-day trial. Import DWG files, assemble rigging plots, or calculate venue capacities with zero watermarks.

STEP 03 key

Unlock anytime with an offline-capable key

Enter your standalone serial key. Operates air-gapped on touring laptops, secure facility workstations, or remote production trucks.

Enterprise Engineering Standards

code

Built by Codexa Software Independent systems engineering • South Africa

cloud_off

100% Offline-Capable Standalone Zero always-on telemetry • Air-gapped safe

verified_user

Secure Global & Local Billing PayFast (ZAR) • Paddle (USD / EUR)

support_agent

Direct Engineer Support No tier-1 scripts • Talk directly to authors

READY TO DEPLOY

Ready to build the venue? Unlock Draftworks today.

Experience frictionless parametric drafting without annual license bloat or forced cloud sign-ins.

Get Started arrow_forward

done Includes perpetual fallback option • Instant key
